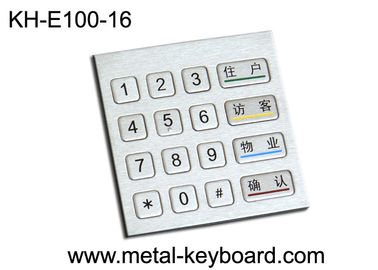

Industrial Rugged Metal Entry Number Keypads 4 x 4 Matrix for Access Kiosk

•This Metal Keypad is mainly used for unsupervised or semi-supervised positions of varied access applications, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.

MECHANICAL DATA

Material: Super quality SUS304 Brushed stainless steel

Keypad Layout: 4 x 4 design,10 numerical keys and 6 function keys

External keypad: with connector for 2 bars x 4 function keys

Key top style: Flat keys, laser engraved & etched graphics & raised braille on keys are available

Stroke travel: 0.45mm

Switch life: more than 1 million of per key

OS: All windows, Linux, Unix, Mac OSX

N.W.:0.45 KGs

ELECTRICAL DATA

Security: encrypted key and self destruction function when tamper attack,

Sensitive data will be kept for more than 5 years when power off.

Encryption process: data encryption and data decryption, MAC and algorithm, PIN encryption

Supply Voltage:5.0V DC±5%

Current Rating: appr. 30mA

EMC Standard: It is compliance with the council EMC directive 2004/108/EC

EN55022: 2006+A2:2010

EN55024: 1998+A1:2001+A2:2003

Lifespan > 5 years

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20°C to +60°C

Storage temperature: -30°C to +70°C

Operating RH: 20-95%

Atmospheric pressure: 60-106Kpa.

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP65(front panel)

Vandal resistant: IK10

Key Lifespan >10 million actuations

MTBF >5,0000H

MTTR <30min
